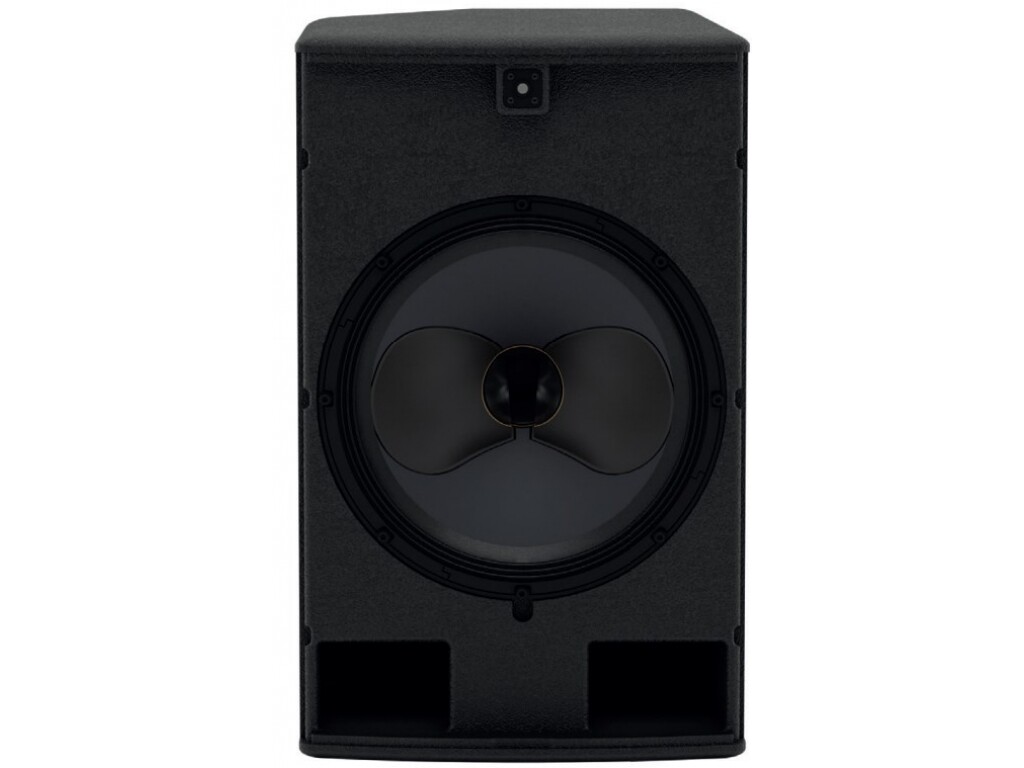

MARTIN AUDIO CDD-LIVE15B

2-way loudspeaker 15"/1.4", black, powerd 2500W, Dante, DSP, 100° hor., 60° vert. (user-rotatable)

TYPE: High-output, Coaxial Differential Dispersion powered two-way system
FREQUENCY RESPONSE: 55Hz - 20kHz ±3dB, -10dB @ 45Hz
DRIVER LF: 15" (380mm)/3" (75mm) voice coil, long excursion, shared ferrite, motor system with HF
DRIVER HF: 1.4" (36mm) exit/3" (75mm) voice coil, titanium dome, compression driver
INPUT SENSITIVITY: -20dBu for 100dB SPL
MAXIMUM SPL. 126dB continuous / 132dB peak
DISPERSION: 100°-60° horizontal, 60° vertical (user-rotatable)
CROSSOVER: 1.7kHz Active LR8 with low latency HF FIR equalisation
PRESETA: pole mount/ pole mount with sub/ stage monitor, selection via rear panel switch
CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE: 20 kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
DSP: PEQ/shelving filters, Up to 48dB/Oct HPF, Low latency HF FIR filters, Up to 200ms input delay
AMPLIFIER: 2 channel switch-mode, class D,
OUTPUT POWER: Peak 2500W, Continuous 1250W
MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
MAINS CONNECTOR Neutrik® Powercon True1
ENCLOSURE: Extensively braced multi-laminate plywood.
FINISH: Textured black PU coating.
GRILLE: perforated mild steel with protective zinc plating and black powder coat finish
FITTINGS: Top hat for pole mounting, 15 x M8 mounting points, Two side pocket handles
DIMENSIONS: (W) 427mm x (H) 696mm x (D) 422mm
WEIGHT: 37kg (81.4lbs) excluding Transit cover
ACCESSORIES: Transit Cover
OPTIONAL: yoke and universal brackets
