6/12.5/25W@100V, 100W AES@8Ohm, user-rotatable

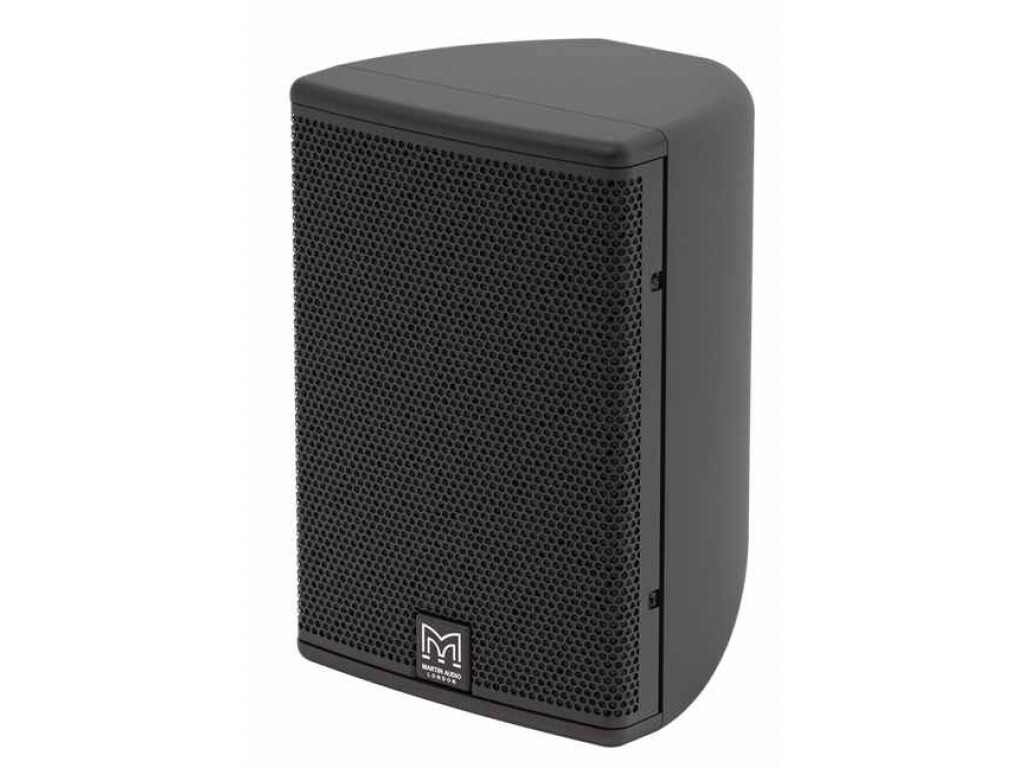

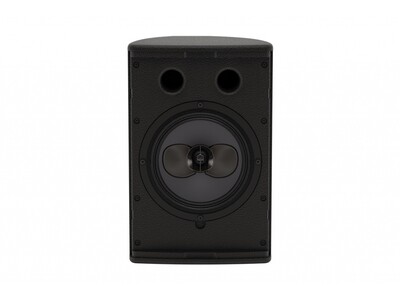

TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system

FREQUENCY RESPONSE. 100Hz-20kHz ± 3dB -10dB @ 70Hz

DRIVER LF: 5.25" (130mm)/1.25" (32mm) voice coil, long excursion, ferrite motor system

DRIVER HF: 0.75" (19mm) voice coil, fabric dome with neodymium motor system

RATED POWER: 100W AES, 400W peak

TRANSFORMER SETTINGS: 100V line: 6W, 12.5W, 25W

SENSITIVITY: 90dB

MAXIMUM SPL: 110dB continuous, 116dB peak / 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB

NOMINAL IMPEDANCE: 8 ohms

DISPERSION (-6dB): 120°-90° horizontal, 80° vertical (user-rotatable)

CROSSOVER: 2.5kHz passive

ENVIRONMENTAL: Rated at IP54

CONNECTORS: Low profile 13A push-lock, weatherproof input panel cover with dual cable glands

PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link +

FITTINGS: 6 x M5 inserts for wall/ceiling brackets

DIMENSIONS: (W) 160mm x (H) 230mm x (D) 149mm

WEIGHT: 3.4kg
