12.5/25/50W@100V, 150W AES@8Ohm, user-rotatable

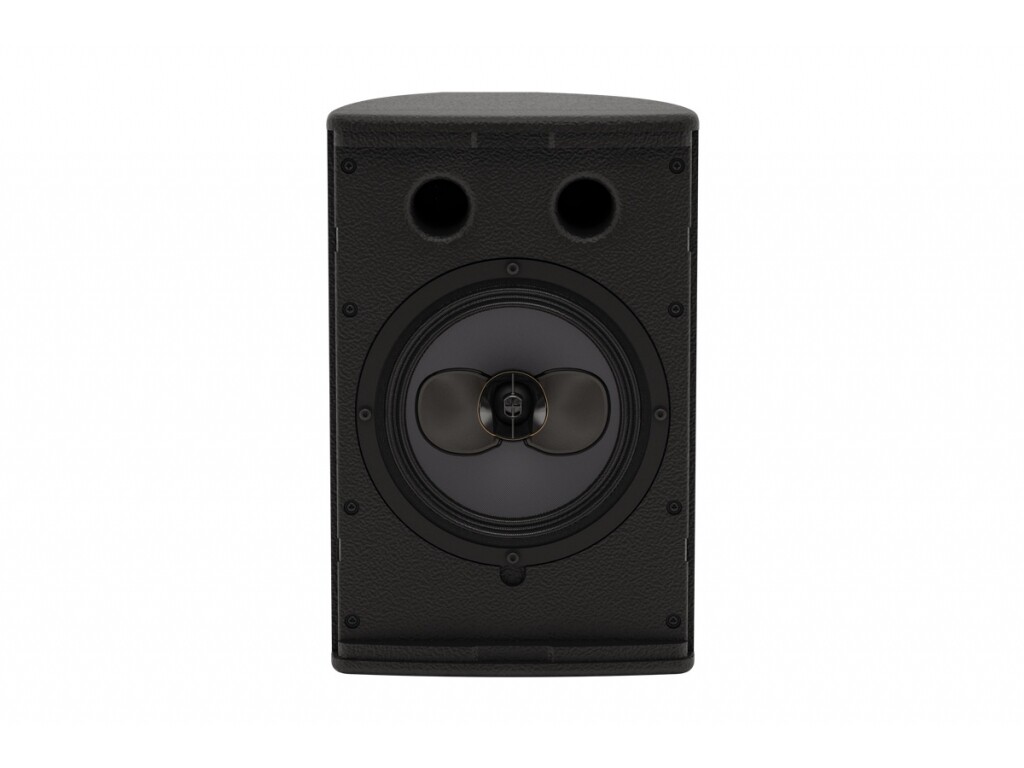

TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system

FREQUENCY RESPONSE: 80Hz-20kHz ± 3dB -10dB @ 70Hz

DRIVER LF: 6.5" (165mm)/1.5" (38mm) voice coil, long excursion, ferrite motor system

DRIVER HF: 1" (25mm) voice coil, fabric dome with neodymium \ motor system

RATED POWER: 150W AES, 600W peak

TRANSFORMER SETTINGS: 100V line: 12.5W, 25W, 50W

SENSITIVITY: 91dB

MAXIMUM SPL: 113dB continuous, 119dB peak 6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB.

NOMINAL IMPEDANCE: 8 ohms

DISPERSION: 110°-80° horizontal, 80° vertical (user-rotatable)

CROSSOVER: 2.5kHz passive

ENVIRONMENTAL: Rated at IP54

CONNECTORS: Low profile 13A push-lock, weatherproof input panel cover with dual cable glands

PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link +

FITTINGS: 4 x M6 inserts for wall/ceiling brackets

DIMENSIONS: (W) 210mm x (H) 325mm x (D) 210mm

WEIGHT: 6.5kg
