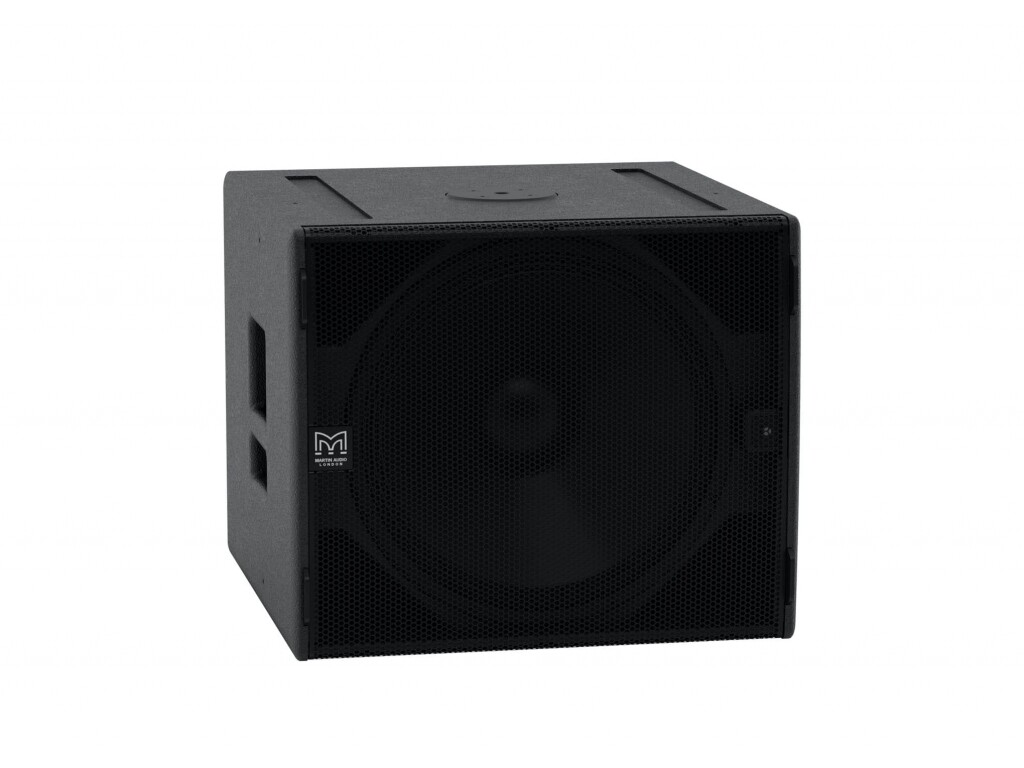

MARTIN AUDIO SXP118B

subwoofer 18", black, powerd 2000W, Dante, DSP

TYPE: Compact, direct radiating powered subwoofer
FREQUENCY RESPONSE: 47Hz - 150Hz ±3dB, -10dB at 41Hz
DRIVER: 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
INPUT SENSITIVITY: -20dBu for 100dB SPL (CDD12/15), -13dBu for 100dB SPL (CDD8)
MAXIMUM SPL: 132dB continuous / 135dB peak
DISPERSION: Omnidirectional / or Cardioid (paired)
CROSSOVER: Active
PRESETS: for CDD Live 8, 12 & 15 mono-pole or cardioid (paired), selection via rear panel switch
CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE: 20 kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
DSP: PEQ/shelving filters, Up to 48dB/Oct LPF, Up to 200ms input delay
AMPLIFIER: 2 channel switch-mode, class D, Bridged Tied
OUTPUT POWER: Peak 2000W, Continous 1000W
MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
MAINS CONNECTOR: Neutrik® Powercon True1
ENCLOSURE: Extensively braced multi-laminate birch plywood.
FINISH: Textured black PU coating.
GRILLE: perforated mild steel with protective zinc plating and black powder coat finish
FITTINGS:
- Two skids on base, with mating channels on top
- Four rear-mounted 100mm (4in) castors
- M20 top-mounted thread plate for pole mounting
- 16 x M10 mounting points
- 2x Bar handles, 1 on each side
- 4x fittings for optional transit cover
DIMENSIONS: (W) 600mm x (H) 509mm x (D) 632mm (760mm including castors)
WEIGHT: 50kg (110lbs) excluding Transit cover
ACCESSORIES: Transit Cover
