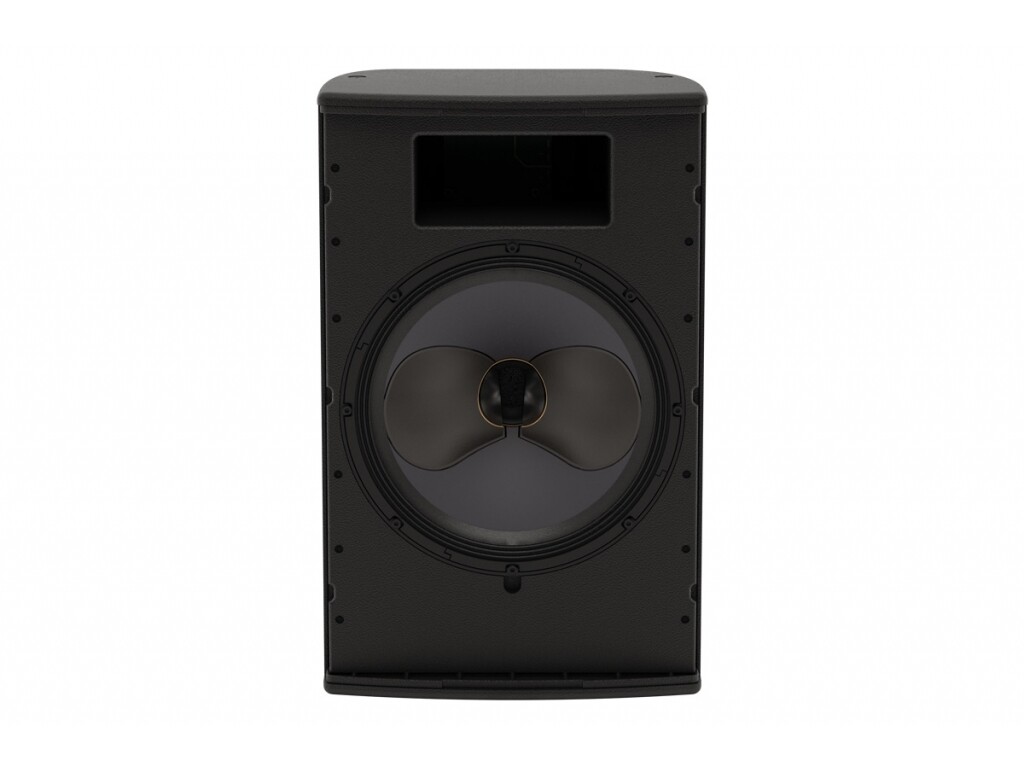

TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system

FREQUENCY RESPONSE: 70Hz-20kHz ± 3dB, -10dB @ 55Hz

DRIVE: LF 8", HF: 1"

RATED POWER: 200W AES, 800W peak

RECOMMENDED AMPLIFIER: iK81

TRANSFORMER SETTINGS: 100V line: 120W, 60W, 30W, 15W

SENSITIVITY: 94dB

MAXIMUM SPL: 117dB continuous, 123dB peak

NOMINAL IMPEDANCE: 8 ohms

DISPERSION: (-6dB) 110°-80° horizontal, 60° vertical (user-rotatable)

CROSSOVER: 2.3kHz passive

ENCLOSURE: 14 litre, composite material

FINISH: Black or white textured paint

PROTECTIVE GRILLE: Black or white perforated steel with scrim cloth backing

CONNECTORS: Low profile 13A push-lock

PHOENIX CONNECTOR 5 WAY: Common, 120W, 60W, 30W, 15W

FITTINGS: M6 inserts for wall/ceiling brackets

DIMENSIONS: (W) 256mm x (H) 410mm x (D) 252mm

WEIGHT: 11.1kg
