15/30/60/120W@100V, 250W AES@8Ohm

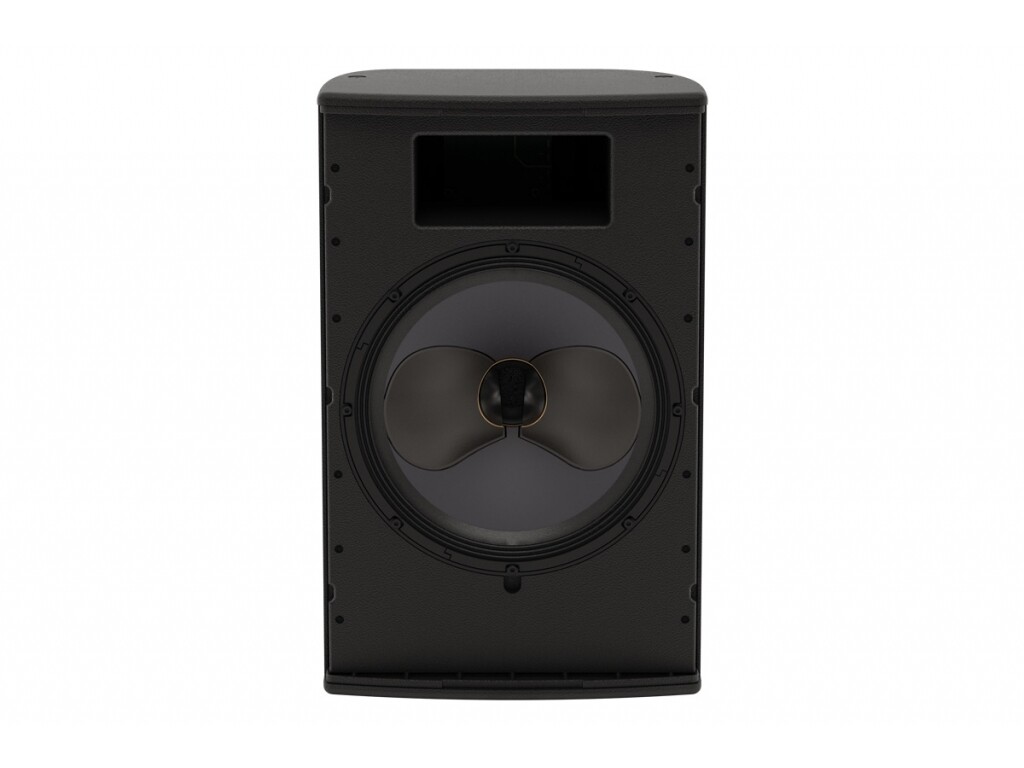

TYPE: Compact, Coaxial Differential Dispersion passive two-way system

FREQUENCY RESPONSE: 65Hz-20kHz ± 3dB, -10dB @ 55Hz

DRIVER: LF: 10", HF: 1"

RATED POWER: 250W AES, 1000W peak

TRANSFORMER SETTINGS 100V line: 120W, 60W, 30W, 15W

SENSITIVITY:96dB

MAXIMUM SPL: 120dB continuous, 126dB peak

NOMINAL IMPEDANCE: 8 ohms

DISPERSION: 110°-75° horizontal, 60° vertical (user-rotatable)

CROSSOVER: 2kHz passive

ENCLOSURE: 28 litre, composite material

FINISH: Black or white textured paint

PROTECTIVE GRILLE: Black or white perforated steel with scrim cloth backing

CONNECTORS: Low profile 20A push-lock

PHOENIX CONNECTOR 5 WAY: Common, 120W, 60W, 30W, 15W

FITTINGS: 6 x M8 inserts for wall bracket, 10 x M8 fly points

DIMENSIONS: (W) 323mm x (H) 513mm x (D) 310mm

WEIGHT: 16.9kg
