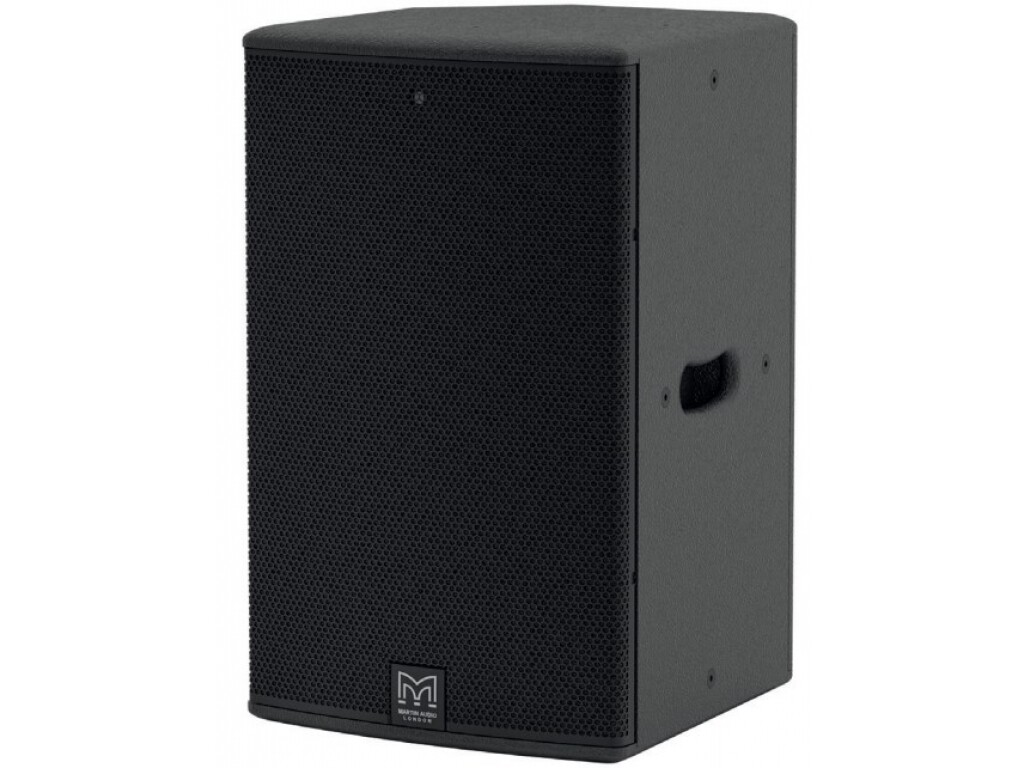

MARTIN AUDIO CDD-LIVE12B

2-way loudspeaker 12"/1", black, powerd 2500W, Dante, DSP, 110° hor., 60° vert. (user-rotatable)

TYPE: Compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY RESPONSE: 62Hz - 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 12" (300mm)/2.5" (63.5mm) voice coil, long excursion, shared ferrite, motor system with DRIVER HF: 1" (25mm) exit/1.7" (44mm) voice coil, polyimide dome, compression driver
INPUT SENSITIVITY: -18dBu for 100dB SPL
MAXIMUM SPL: 122dB continuous / 128dB peak
DISPERSION: 110°-60° horizontal, 60° vertical (user-rotatable)
CROSSOVER: 1.8kHz Active LR8 with low latency HF FIR equalisation
PRESETS: pole mount/ pole mount with sub/ stage monitor, selection via rear panel switch
CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
DSP: PEQ/shelving filters, Up to 48dB/Oct HPF, Low latency HF FIR filters, Up to 200ms input delay
AMPLIFIER: 2 channel switch-mode, class D,
OUTPUT POWER: Peak 2500W, Continuous 1250W
AVERAGE EFFICIENCY 89%
MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
MAINS CONNECTOR: Neutrik® Powercon True1
ENCLOSURE: Extensively braced multi-laminate plywood.
FINISH: Textured black PU coating.
GRILLE: perforated mild steel with protective zinc plating and black powder coat finish.
FITTINGS: Top hat for pole mounting, 15 x M8 mounting points, Two side pocket handles
DIMENSIONS (W) 359mm x (H) 580mm x (D) 373mm
WEIGHT 28kg (61.6lbs) excluding Transit cover
ACCESSORIES: Transit Cover
OPTIONAL: wall, yoke and universal brackets
