20W@8Ohm, 3.8/7.5/15@100V, Ø 202mm, cut out Ø 170mm

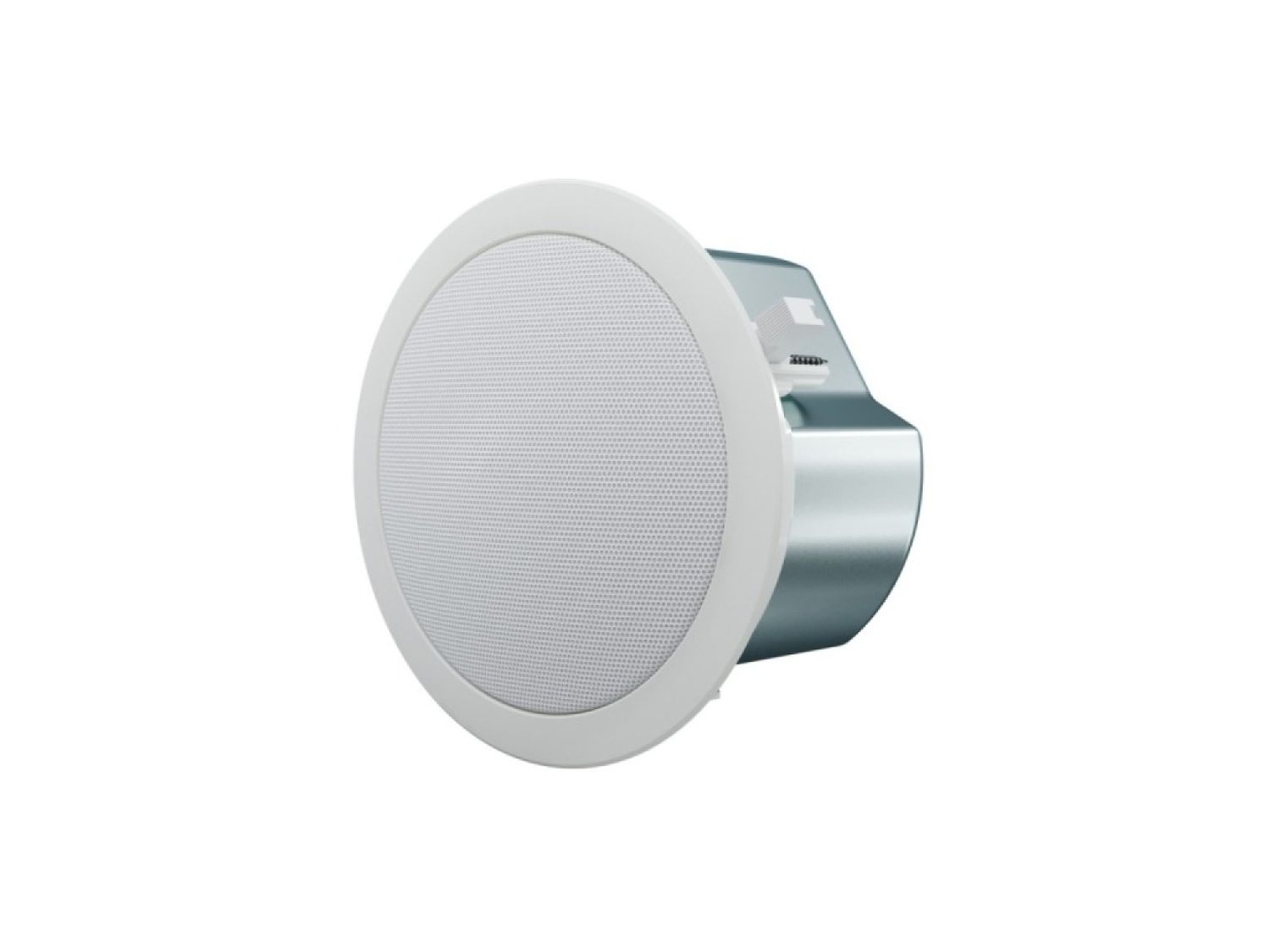

TYPE :Full range, passive, ceiling speaker

FREQUENCY RESPONSE (with preset): 95Hz - 15kHz ± 3dB, -10dB @68Hz

DRIVERS: 3" (78mm), Coated paper

RATED POWER (AES): 20W

NOMINAL IMPEDANCE: 8 Ohms

SENSITIVITY (1W/1m): 84dB

MAXIMUM SPL: 97dB (cont), 100dB (peak)

RECOMMENDED HIGH-PASS FILTER: 24dB/octave @ 90Hz

TRANSFORMER TAPS @ 100V: 15, 7.5, 3.8W

DISPERSION: (-6dB) 130° conical

BACK CAN: Zinc-plated Steel

BAFFLE: ABS

PROTECTIVE GRILLE: Perforated steel

FIRE RATING: UL94-V0 UL94-5VB

CONNECTORS: Ceramic block, brass inserts

FITTINGS: C-ring support backing plate

DIMENSIONS: (W) 202mm x (H) 164.7mm x (D ) 202mm

WEIGHT: 1.6kg
