2 Zone + Utility Zone Mixer

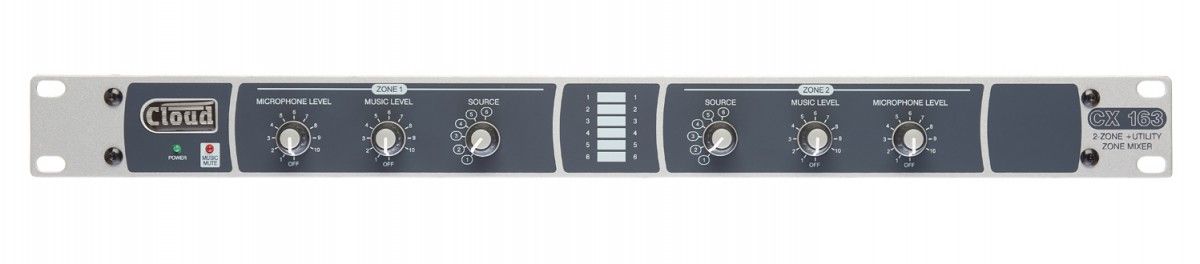

CX163

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.

• 2 zone stereo mixer with mono utility output
• Both stereo zones can be configured to run as mono
• Utility output is constant OdB
• Utility music source is selectable via internal jumper
• 6 stereo line inputs
• Line 6 priority over other input sources in zone 1 only
• Remote music mute
• Microphone access contacts for paging to all 3 zones
• 100Hz high pass filter on all microphone inputs
• Two band microphone EQ
• Remote level control in each zone using RL1
• Front panel controls give microphone level, music source and volume
• EQ card option
